In-Wall Loudspeaker -  K-602 - Preference Audio

In-ceiling Speaker - K-602 - Preference Audio

Overall Dimensions:
9-1/16" W x 12-3/4"H
(230 mm x 324 mm)



Cut-out Dimensions:
8" W x 11-3/4" H x 3-1/4" deep
(203 mm x 298.5 mm x 82.5mm)



Install Guide [PDF]
Brochure [PDF]
Lifetime Limited Warranty

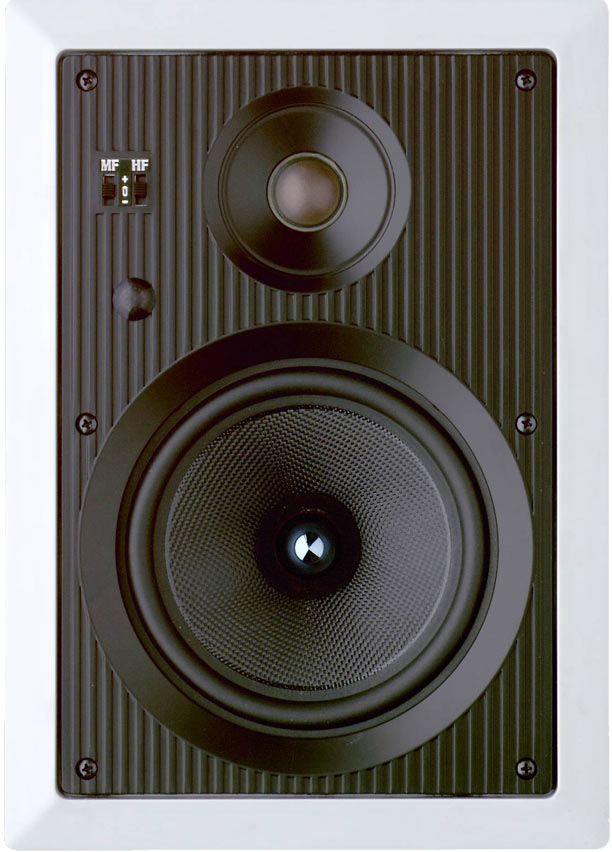

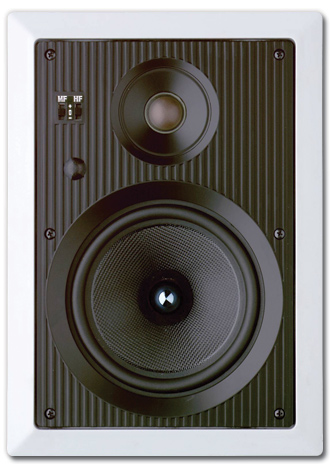

K-602
6-1/2" 2-way In-Wall Loudspeaker

Every model loudspeaker is "timbre-matched" ensuring sonic uniformity throughout the line. This means all models have been carefully engineered to have a family sound; this is also referred to as "voice matching".

Certain fine loudspeakers in the audio industry become benchmarks of sound quality or reference standards by which authoritative industry experts judge all others.

architectural loudspeakers are the new mark of excellence.
You will find no greater value.

Frequency Response: 42Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max
Sensitivity: 90dB 1 watt / 1 meter
Tweeter: 1" Tetoron® soft dome pivoting tweeters
Grille: Perforated Metal Grille MG-62
Impedance: 8 ohms nominal

Phase plug pole piece extensions
IR Knockouts

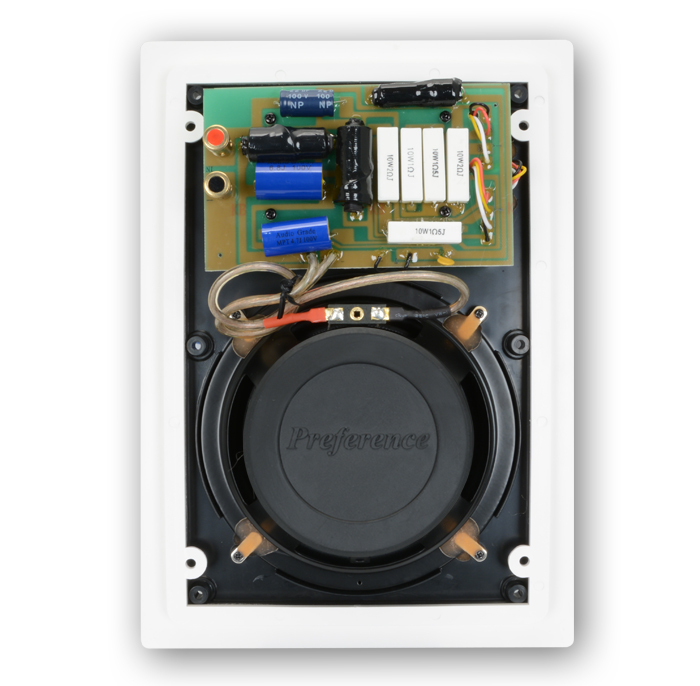

High-grade crossovers with polyswitch overdrive protection
Magnetically Shielded
AIB ribbed baffle design
Woven woofers are made from genuine DuPont Kevlar® fiber
High temperature Polyimide voice coils
Industry Leading Superior Clamp-ring Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs
Acoustically transparent scrim cloth (not foam) grille backing
  hides speaker components from view
Baffle mounted mid & high frequency acoustic compensation / EQ switches

Optional Accessories: (sold separately)
Pre-construction Bracket: RIB-62
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
