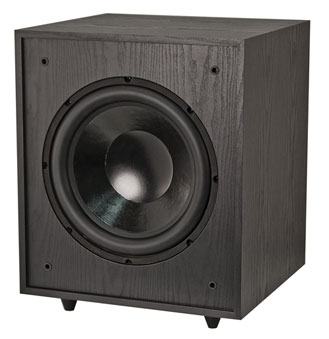

12" Freestanding Powered Subwoofer
Twin Port Design

The P-1200 subwoofer was designed for exceptional performance and value. It features a 12'' extra-long excursion woofer with high BL motor. The bass reflex enclosure with flared port ensures extended bass response and high acoustic efficiency.

The woofer is driven with an integral 300W class A/B amplifier utilizing the patented BASH® technology for high electrical efficiency. The integral rear-mounted 300 watt amplifier includes level, phase (continuously variable 0-180°) and crossover control to contour the subwoofer’s output to blend with virtually all loudspeakers and room environments. The integral low pass crossover network is continuously-variable from 40Hz to 120Hz and can be bypassed if it is preferable to use an external crossover located in an outboard receiver or processor. The P-1200’s integral amplifier incorporates a defeatable signal-sensing circuit that automatically powers up the amplifier when a signal is detected. A double-insulated isolated-ground electrical supply prevents electrical ground loops and reduces the noise floor of the entire audio system.

Frequency Response:	25Hz - 300 Hz (System Response)
Crossover Response:	40Hz - 120Hz (Low-pass filter with bypass switch)
Phase Adjustment:	0 - 180 degrees (Continuously variable)
Amplifier Output Power:	300 watts, with thermal and clipping limiters
Audio Inputs:	Summing stereo line level (RCA x 2)
	LFE (RCA shared with Left input connector)
	Speaker Level -220 ohms
Input Impedance:	Line Level - 20k ohms, Unbalanced
	Speaker Level -220 ohms
Input Power:	120V 60Hz AC
Input Power Connection:	IEC 2-wire receptacle with integral fuse holder
Power (Mains) Fuse:	3.15A 250V T3.15AL (5x20mm) style Slow Blow
Power Modes:	Auto signal sensing and always on
Auto Off Delay:	~10 minutes

	BASH® technology
	Polyswitch overdrive protection
	Sold and Shipped indiviually
	Rear-mounted 300W class A/B amplifier
	12'' extra-long excursion woofer with high BL motor
	Twin Port Design
