Overall Dimensions:
8-7/16" dia
(214.5 mm)

Cut-out Dimensions:
7-1/4" dia. x 3-9/16" deep
(184 mm x 90.5mm)


Lifetime Limited Warranty

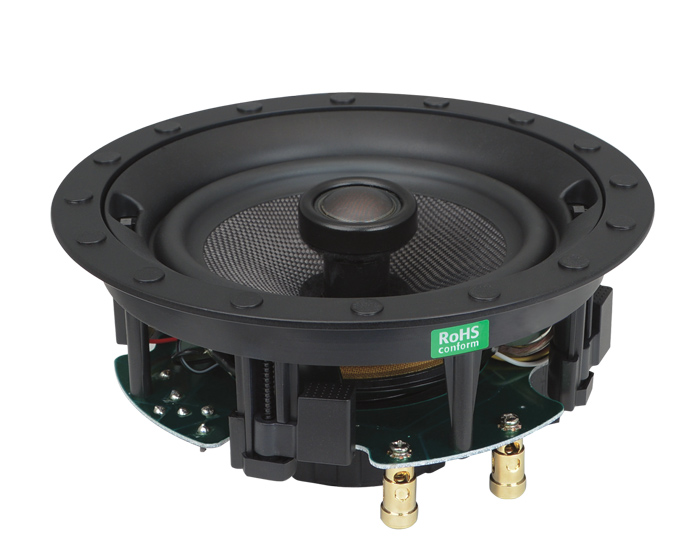

K-625d *Discontinued*
6-1/2" 2-way In-Ceiling / Wall - Frameless

Every model loudspeaker is "timbre-matched" ensuring sonic uniformity throughout the line. This means all models have been carefully engineered to have a family sound; this is also referred to as "voice matching".

Certain fine loudspeakers in the audio industry become benchmarks of sound quality or reference standards by which authoritative industry experts judge all others.

architectural loudspeakers are the new mark of excellence.
You will find no greater value.

Frequency Response: 45Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max
Sensitivity: 86dB 1 watt / 1 meter
Tweeter: 1" Tetoron® soft dome pivoting tweeter
NEW Frameless Design with Magnetically-Attached Grille
Round and Square Grille option: Round Model: MGR-6f  Square Model: MGS-6f
Impedance: 8 ohms nominal

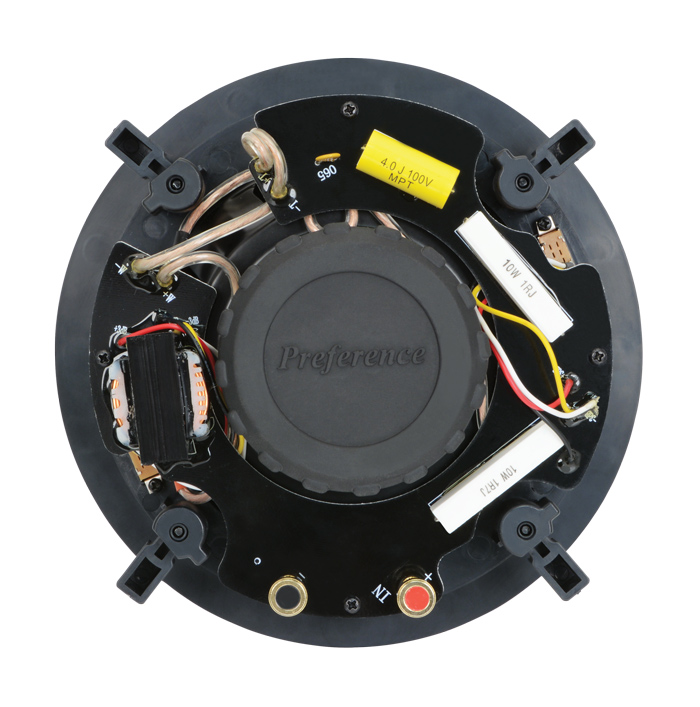

High-grade crossovers with polyswitch overdrive protection
Load-balancing toggle mounting system
Stainless screws
Woven woofers are made from genuine DuPont Kevlar® fiber
High temperature Polyimide voice coils
First-order crossover
Multi-tap inductor to optimize the mid-range performance
Grilles may be painted to match mounting surface

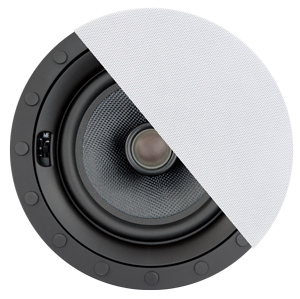

Magnetic, frameless, micro-perforated, vibration free, All-Weather Grille
  (may be custom painted)
Sold and shipped in pairs
Acoustically transparent scrim cloth (not foam) grille backing hides

speaker components from view
Baffle mounted mid & high frequency acoustic compensation / EQ switches

Optional Accessories: (sold separately)
Pre-construction Bracket: RIR-6
Vapor Dome: VPD-6
Bridge for T-Bar Ceiling: PB-6
Plenum Dome: PE-8
Square Frameless Grille: MGS-6f


DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
