In-Wall LCRS Speaker - K-5LCR - Preference Audio

Overall Dimensions:
9" x 15-3/4"
(228.6 mm x 400 mm)

Cut-out Dimensions:
7-7/8" x 14-7/16" x 3-1/2" deep
(200 mm x 367 mm x 89 mm)

Brochure [PDF]

Limited Lifetime Guarantee

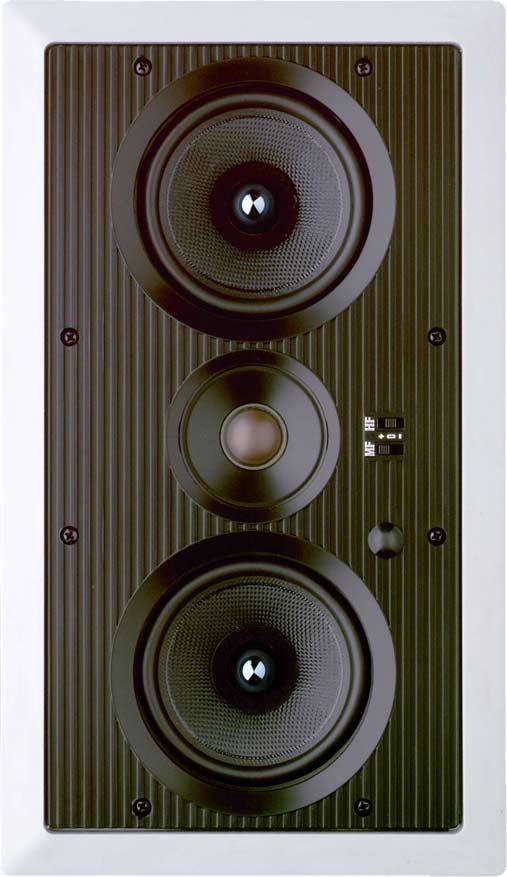

Dual 5-1/4" 2-way In-Wall Loudspeaker - LCRS

Every model loudspeaker is "timbre-matched" ensuring sonic uniformity throughout the line. This means all models have been carefully engineered to have a family sound; this is also referred to as "voice matching".

Certain fine loudspeakers in the audio industry become benchmarks of sound quality or reference standards by which authoritative industry experts judge all others.

K-5LCR May be oriented vertically or horizontally.

Magnetically Shielded
5.1, 6.1, & 7.1 Home Theater Systems
Specially designed for use in left,
center, right & surround loudspeaker
positions of home theater systems.

Frequency Response: 45Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max
Sensitivity: 90dB 1 watt / 1 meter
Tweeter: 1" Tetoron® soft dome pivoting tweeters
Grille: Perforated Metal Grille MG-LCR
Impedance: 8 ohms nominal

Phase plug pole piece extensions
IR Knockouts
High-grade crossovers with polyswitch overdrive protection
Magnetically Shielded
Orient Vertically or Horizontally
AIB ribbed baffle design
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
Industry Leading Superior Clamp-ring Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped Individually
Acoustically transparent scrim cloth (not foam) grille backing
  hides speaker components from view
Baffle mounted mid & high frequency acoustic compensation / EQ switches

Optional Accessories: (sold separately)
Pre-construction Bracket: RIB-LCR
