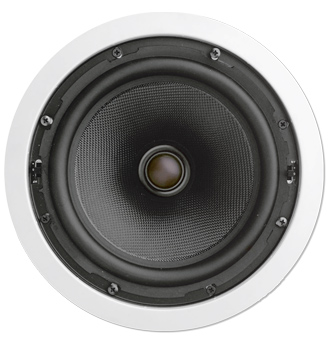

In-Ceiling Speaker - K-825 - Preference Audio

Overall Dimensions:
9-3/4" dia.
(247.6 mm)


Cut-out Dimensions:
8-5/8" dia. x 3-3/8" deep
(219 mm x 85.7 mm)



Brochure [PDF]
Lifetime Limited Warranty

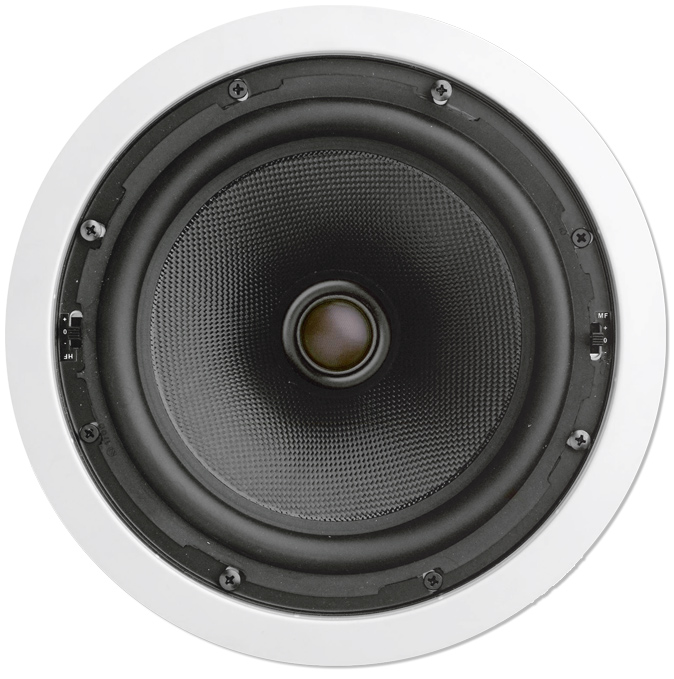

K-825
8" 2-way In-Ceiling Loudspeaker

Every model loudspeaker is "timbre-matched" ensuring sonic uniformity throughout the line. This means all models have been carefully engineered to have a family sound; this is also referred to as "voice matching".

Certain fine loudspeakers in the audio industry become benchmarks of sound quality or reference standards by which authoritative industry experts judge all others.

architectural loudspeakers are the new mark of excellence.
You will find no greater value.

Frequency Response: 35Hz - 21kHz ± 3 dB
Power Handling: 60 watts nom. 120 max
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" Tetoron® soft dome pivoting tweeters
Grille: Perforated Metal Grille MGR-8
Impedance: 8 ohms nominal

High-grade crossovers with polyswitch overdrive protection
Proven Mounting System
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs
Acoustically transparent scrim cloth (not foam) grille backing hides

speaker components from view
Baffle mounted mid & high frequency acoustic compensation / EQ switches

Optional Accessories: (sold separately)
Pre-construction Bracket: RIR-8
Vapor Dome: VPD-8
Bridge for T-Bar Ceiling: PB-8
Plenum Dome: PE-8
